Compact RGBCCT LED strip controller

flex MINI — Compact RGBCCT LED Controller (5-in-1)

The MESHLE flex MINI is a compact RGBCCT LED controller on one small board. Run full RGB plus warm-to-cool tunable white, or switch the same five channels to RGBW, RGB, CCT, or single-color strip. 144W of output, controlled from the free MESHLE App as a Bluetooth LED controller — fully offline, with no WiFi, hub, or cloud required.

Download datasheet

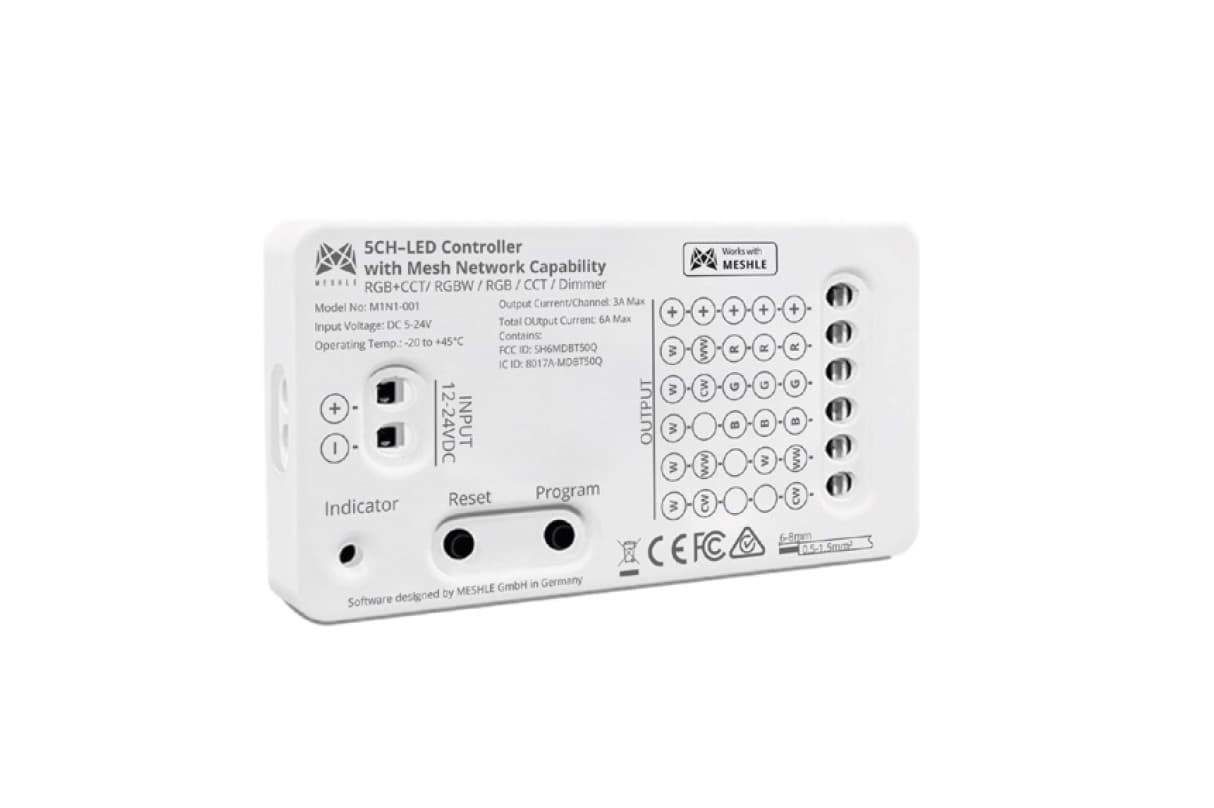

MESHLE flex MINI — compact 5-channel Bluetooth Mesh LED controller for RGBCCT, RGBW, RGB, CCT, and single-color strip
5-in-1modes, one controller
144Wmax output, 5–24V DC
5CH3A per channel, 6A total
Why flex MINI

One small controller, every LED strip type

5-in-1: one controller, five LED modes

A single compact controller drives RGBCCT, RGBW, RGB, CCT, and single-color LED strip. Switch the mode to match the tape you're running — no separate part for every configuration, no extra hardware.

Local-first, works without WiFi

flex MINI runs on MESHLE Bluetooth Mesh, device to device. Scenes, timers, and rules execute locally with no WiFi, no hub, and no cloud account. Add the optional MESHLE Gateway only when you want Internet or voice control.

Bluetooth Mesh group control

Control flex MINI individually or as a group over MESHLE Bluetooth Mesh. It works with battery-powered and battery-free kinetic switches and sensors, so a wall press or motion trigger can drive one node or a whole zone.
Specifications

Compact RGBCCT LED controller — full specifications

flex MINI is a compact 5-channel PWM RGBCCT LED controller with MESHLE Bluetooth Mesh, mode-switchable between RGBCCT, RGBW, RGB, CCT, and single-color. Constant-voltage output for 12–24V LED strip, with the Bluetooth Mesh module pre-integrated.

MESHLE flex MINI (M1N1-001)

Input voltage
5–24V DC
Output voltage
5 × (12–24)V DC
Output current
5 channels, 3A per channel (6A total max)
Output power
144W max
Output type
Constant voltage
Dimming
0–100%, logarithmic curve
PWM frequency
1000 Hz (default)
Operating temperature
−30°C to +55°C
Channels / modes
5 PWM channels — mode-switchable: RGBCCT / RGBW / RGB / CCT / Single color
Wireless
MESHLE Bluetooth Mesh (Bluetooth 5)
Network size
Up to 250 nodes per network
OTA updates
Yes — settings preserved across firmware revisions
Model code
M1N1-001
MESHLE App

Dual color wheel in the MESHLE App

Every MESHLE device with the RGBTW Interface exposes two color wheels side by side. Use the RGB wheel to pick any hue and adjust saturation, or switch to the CCT wheel to dial in the exact warm-to-cool white temperature — plus a shared brightness control that applies to whichever wheel is active.

Save your favorite colors and white tones, apply them instantly, and group multiple lights to set an entire room with a single tap. The MESHLE App is free for iOS and Android — no account registration required.

Explore RGB + Tunable White interface
RGB color wheel in the MESHLE App
MESHLE App showing the RGBTW interface with an RGB color wheel and a separate CCT wheel for tunable white
Pick your mode

Which mode drives your LED strip

The same flex MINI maps its five PWM channels to whatever 12–24V tape you wire in. Set the mode to match the LED strip type — here's what each one drives.

RGBCCT mode

Full five-channel mixing for an RGBCCT LED strip — saturated color plus warm-to-cool tunable white in one run. Best for coves, feature walls, and color-changing accents where you need both vivid color and adjustable white from a single Bluetooth LED controller.

RGBW mode

The RGBW controller setting drives an RGBW LED strip — RGB plus a dedicated white channel, so whites stay clean instead of being mixed from color. Ideal for accent and display lighting that needs both vivid color and true white.

RGB mode

A three-channel RGB LED controller for classic color tape. Run scenes, fades, and animations across an RGB LED strip over MESHLE Bluetooth Mesh — color washes, signage, and effects without a separate hub.

CCT mode (tunable white)

Two-channel tunable-white control for a warm-to-cool CCT LED strip and 12–24V linear bars. Shift color temperature on a schedule for Human Centric Lighting across coves and architectural channels.

Single-color / dimmer mode

A single-channel LED controller and dimmer for one-color tape — cove, stair, under-cabinet, and accent runs. Smooth 0–100% PWM dimming, app-controlled and offline-first, coordinated across up to 250 nodes per network.

Multichannel dimmer mode

Run flex MINI's five PWM channels as up to five independent single-color dimming zones from one controller — separate cove, stair, and under-cabinet runs, each dimmed on its own channel. Smooth 0–100% PWM dimming per channel, app-controlled and offline-first, coordinated over MESHLE Bluetooth Mesh.
Where flex MINI fits

One compact controller across every install

RGBCCT LED strip in a small footprint

Drive an RGBCCT LED strip — full color plus tunable white — from one compact flex MINI that tucks into tight enclosures. 144W of output covers typical strip runs, and the same five channels switch to RGBW, RGB, or CCT without swapping controllers.

Tunable white and Human Centric Lighting

Set flex MINI to CCT mode for warm-to-cool tunable-white tape and 12–24V linear bars. Shift color temperature through the day for Human Centric Lighting — scheduled locally on the mesh, no cloud needed.

Cove and stair accent lighting

Use single-color or RGB mode for cove, stair, and ledge accents. Each run coordinates over MESHLE Bluetooth Mesh — up to 250 nodes per network — and reacts to kinetic switches or motion sensors with no central controller.

Under-cabinet and furniture lighting

The compact board fits behind cabinets, in furniture recesses, and inside tight joinery. Drive 12–24V under-cabinet tape in single-color, CCT, or RGB mode and trigger it from a battery-free wall switch.

Signage and display lighting

Light edge-lit signage, lightbox modules, and display cases with 12–24V constant-voltage strip. Run RGB scenes and fades, or set static white in CCT mode — controlled from the MESHLE App over Bluetooth Mesh.

Residential smart-home lighting

Add app-controlled color and tunable-white strip to a MESHLE smart environment. flex MINI groups with other MESHLE devices, runs timers and rules locally, and works with battery-free switches — no WiFi or hub required day to day.
More from MESHLE

Other Bluetooth Mesh LED controllers

Different form factors, channel counts, and current ratings — all on the same MESHLE Bluetooth Mesh stack. Pick the controller that fits your strip and your install.

View all LED controllers
Frequently asked questions

flex MINI RGBCCT LED controller FAQ

Can it control an RGBW or RGB LED strip over Bluetooth?

Yes. As a Bluetooth LED controller, flex MINI drives RGBW, RGB, RGBCCT, CCT, and single-color LED strip — you pick the mode to match the tape. The same five PWM channels remap to whichever LED strip type you wire in, controlled from the free MESHLE App over MESHLE Bluetooth Mesh.

Does it work without WiFi, a hub, or the cloud?

Yes. flex MINI works fully offline — no WiFi, no hub, no cloud account. Scenes, timers, and rules run locally on MESHLE Bluetooth Mesh, device to device. The optional MESHLE Gateway only adds Internet, Amazon Alexa, or Google Assistant when you choose to connect it.

Do I need a gateway?

No — not for local control. flex MINI and the MESHLE App talk directly over Bluetooth Mesh. The optional MESHLE Gateway is only needed when you want remote Internet access or voice control through Amazon Alexa or Google Assistant. It's never required for everyday use.

What is an RGBCCT LED controller?

An RGBCCT LED controller drives a five-channel strip: red, green, blue plus warm and cool white, so you get saturated color and warm-to-cool tunable white from one run. flex MINI does exactly this with 5 channels at 3A each (6A total, 144W max), and the same channels also switch to RGBW, RGB, CCT, or single-color strip.

Can I use battery-free or kinetic switches with it?

Yes. flex MINI is compatible with both battery-powered and battery-free (kinetic) switches and sensors. A kinetic wall switch or a motion sensor can control a single node or a whole group, with no wiring to the switch and no batteries to replace.

How many can I network together?

Up to 250 nodes per network. flex MINI joins the same MESHLE Bluetooth Mesh as your other MESHLE controllers, switches, and sensors, and you control each one individually or in groups from the MESHLE App.

How small is the flex MINI — does it fit in a tight enclosure?

flex MINI has a compact, small-footprint board designed to tuck into tight luminaire housings, furniture recesses, and behind cabinets where a larger controller won't fit. It's the smaller sibling in the flex range, rated at 3A per channel and 144W total. For exact dimensions, see the datasheet or talk to engineering.

What automation can it run?

flex MINI supports timers (Weekday, Sunset, and Sunrise triggers), If-Else rules, an adjustable Power-Up State, and a configurable Fade transition duration. Automations are stored on the mesh node and run locally — they keep working without a phone or internet connection.

5-in-1 control, fully offline. On your bench.

Put flex MINI through its paces — switch between RGBCCT, RGBW, RGB, CCT, and single-color, run it offline with no WiFi or cloud, and pair it with battery-free switches. Talk to engineering for an evaluation unit.
