Addressable LED Controller — Bluetooth Mesh Effects & Animations

The MESHLE SPI LED Controller is an addressable LED controller for digital pixel strip — the IC-per-pixel kind, not analog tape. Drive addressable single-color, CCT, RGB, or RGBCCT pixels, then build your own look with predefined effects, a built-in Effect editor, and an Animation editor. It runs on MESHLE Bluetooth Mesh from the free MESHLE App, fully offline, with no WiFi, hub, or cloud required.

View product details

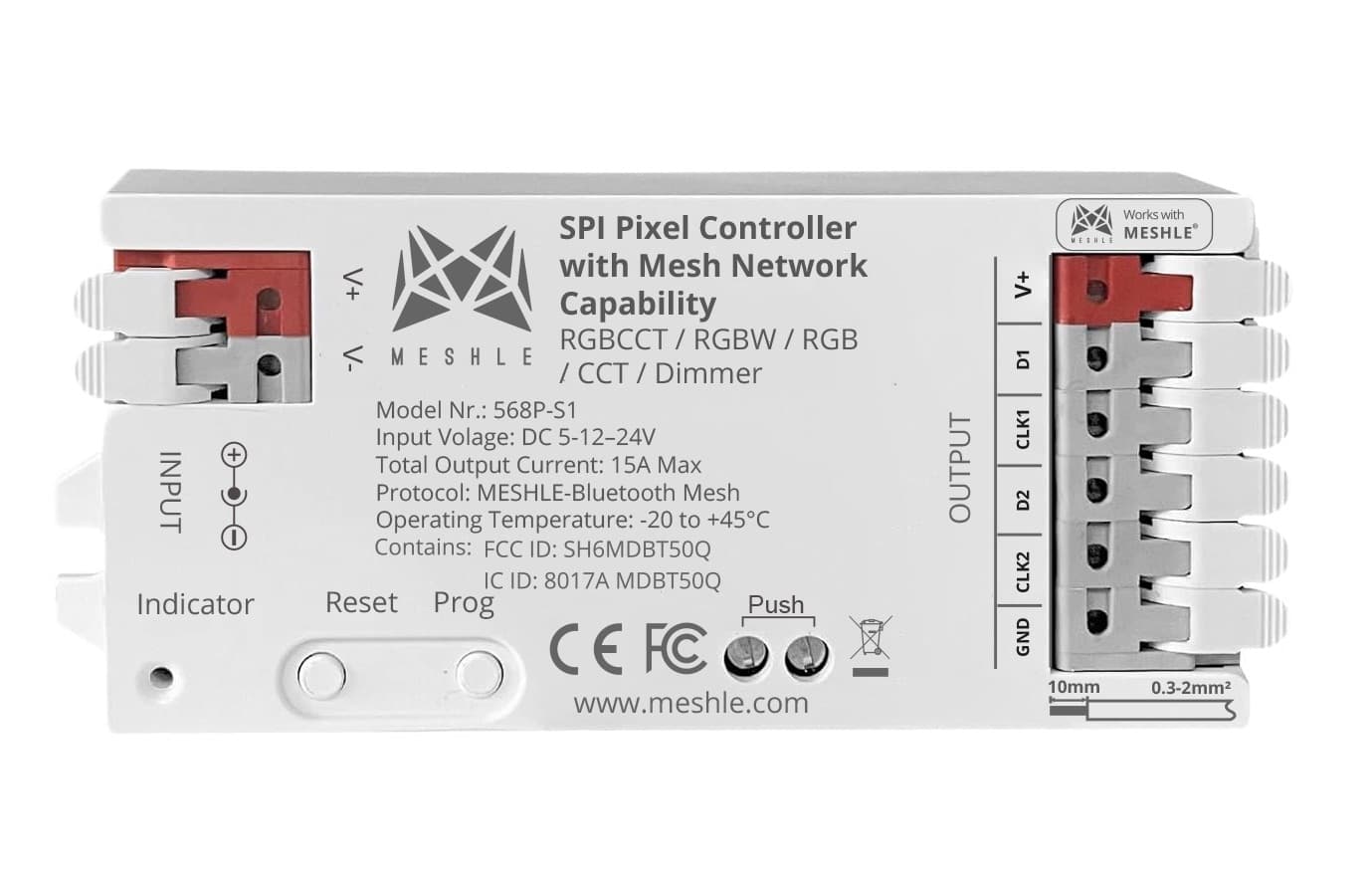

MESHLE SPI LED Controller (568P-6) — addressable Bluetooth Mesh pixel LED controller for single-color, CCT, RGB, and RGBCCT digital strip
4-in-1addressable LED types (single, CCT, RGB, RGBCCT)
600 ICsaddressable pixels per controller
15Atotal output, 5/12/24V DC
Why the SPI LED Controller

Drive digital pixel strip, design your own effects

Built for addressable pixel strip

This is a digital (SPI) controller for addressable LED strip and pixels — the IC-per-pixel kind, not analog constant-voltage tape. One interchangeable interface drives addressable single-color, CCT, RGB, and RGBCCT pixels, so a single controller covers your whole digital-strip lineup.

Predefined effects plus your own animations

Start with a library of predefined effects and animations for quick setup, then go further: the built-in Effect editor lets you create and fine-tune custom lighting effects, and the Animation editor lets you design your own dynamic, pixel-level animations — all from the free MESHLE App.

Offline-first Bluetooth Mesh control

The SPI LED Controller runs on MESHLE Bluetooth Mesh, device to device. Effects, scenes, and timers execute locally with no WiFi, no hub, and no cloud account. It works with kinetic (battery-free) switches, multi-sensors, motion sensors, and contact sensors, so a wall press or movement can trigger one node or a whole zone.
Specifications

Addressable LED controller — full specifications

The MESHLE SPI LED Controller (568P-6) is a digital pixel LED controller with MESHLE Bluetooth Mesh, driving addressable single-color, CCT, RGB, and RGBCCT strip with predefined effects and a built-in Effect and Animation editor.

MESHLE SPI LED Controller (568P-6)

Input voltage
DC 5 / 12 / 24V
Total output current
15A max
IC quantity
Up to 600 ICs (addressable pixels) max
Operating temperature
−20°C to +45°C
Supported LED types
Addressable single-color, CCT, RGB, RGBCCT
Wireless
MESHLE Bluetooth Mesh (Bluetooth 5)
Network size
Up to 250 nodes per network
Control
Free MESHLE App — predefined effects, Effect editor, Animation editor
Model code
568P-6
MESHLE App

Dual color wheel in the MESHLE App

Every MESHLE device with the RGBTW Interface exposes two color wheels side by side. Use the RGB wheel to pick any hue and adjust saturation, or switch to the CCT wheel to dial in the exact warm-to-cool white temperature — plus a shared brightness control that applies to whichever wheel is active.

Save your favorite colors and white tones, apply them instantly, and group multiple lights to set an entire room with a single tap. The MESHLE App is free for iOS and Android — no account registration required.

Explore RGB + Tunable White interface
RGB color wheel in the MESHLE App
MESHLE App showing the RGBTW interface with an RGB color wheel and a separate CCT wheel for tunable white
What it drives

Addressable LED types and the effects engine

The interchangeable interface maps the SPI LED Controller to whatever digital strip you wire in. Match it to your addressable pixel type, then shape the light with the effects and animation editors.

Addressable single-color

Drive an addressable single-color pixel strip where each pixel is individually controllable — chases, gradients, and per-pixel dimming across one digital run, no per-channel color mixing required.

Addressable CCT (tunable white)

Run addressable tunable-white pixels for warm-to-cool effects along a single strip. Shift color temperature pixel by pixel for white-light gradients and Human Centric Lighting on digital tape.

Addressable RGB

The classic pixel mode — an addressable RGB strip where every pixel sets its own color. Build rainbows, comets, and color waves with full per-pixel control over MESHLE Bluetooth Mesh.

Addressable RGBCCT

Combine saturated color with tunable white per pixel on an addressable RGBCCT strip. Get vivid effects and clean adjustable white from the same digital run, all from one SPI LED controller.

Predefined effects & Effect editor

Pick from a library of predefined effects and animations for instant results, then open the built-in Effect editor to create and fine-tune your own — adjust speed, color, and behavior until the look is exactly right.

Animation editor

Design custom dynamic animations pixel by pixel with the built-in Animation editor. Build your own moving patterns for digital strip and play them back across the run, controlled from the free MESHLE App.
Where it fits

Addressable pixel lighting, install by install

Pixel signage and lettering

Light addressable pixel signage, channel letters, and edge-lit lettering with per-pixel control. Run predefined effects or your own animations to make signs move, chase, and react over MESHLE Bluetooth Mesh.

Architectural facades

Wrap facades, columns, and building edges in addressable RGB or RGBCCT pixel strip. Design slow color washes or dynamic animations and run them locally, with no cloud and no WiFi required day to day.

Entertainment and stage

Drive pixel strip on stages, sets, and event builds with the Effect and Animation editors. Create custom dynamic effects, then trigger them from the MESHLE App or a kinetic switch for hands-on cues.

Retail displays

Add motion to shelves, display cases, and feature walls with addressable pixel strip. Predefined effects give instant polish; the editors let you match brand color and rhythm for a digital LED controller that stands out.

Dynamic coves and accent runs

Turn coves, ledges, and accent channels into moving light with addressable strip. Build pixel-level gradients and animations that flow along the run, coordinated across up to 250 nodes per network.

Art and light installations

Bring interactive and kinetic art to life with a pixel LED controller and the built-in Animation editor. Design bespoke animations per pixel and link them to sensors or battery-free switches for responsive pieces.
More from MESHLE

Other Bluetooth Mesh LED controllers

Analog strip controllers, drivers, and more — all on the same MESHLE Bluetooth Mesh stack. Pick the controller that matches your LED type, whether it's digital pixel strip or constant-voltage tape.

View all LED controllers
Frequently asked questions

Addressable LED controller FAQ

What is an addressable LED controller?

An addressable LED controller drives digital (SPI) LED strip where every pixel has its own driver IC and can be set individually — unlike analog tape, where the whole run shows one color. The MESHLE SPI LED Controller (568P-6) controls addressable single-color, CCT, RGB, and RGBCCT pixels and adds predefined effects plus a built-in Effect and Animation editor, all over MESHLE Bluetooth Mesh.

What addressable LED strip and IC types does it support?

The interchangeable interface supports addressable single-color, CCT, RGB, and RGBCCT LEDs, so one controller covers your whole digital-strip lineup. It runs on DC 5 / 12 / 24V input with 15A total output and drives up to 600 ICs (addressable pixels).

Does it work without WiFi, a hub, or the cloud?

Yes. The SPI LED Controller works fully offline — no WiFi, no hub, no cloud account. Effects, animations, scenes, and timers run locally on MESHLE Bluetooth Mesh, device to device. An optional MESHLE Gateway only adds Internet or voice control when you choose to connect it.

Can I create custom effects and animations?

Yes — that's the standout feature. Start from a library of predefined effects and animations for quick setup, then use the built-in Effect editor to create and fine-tune custom lighting effects, and the Animation editor to design your own dynamic, pixel-level animations. Everything is built in the free MESHLE App.

How many pixels or ICs can it drive?

The SPI LED Controller drives up to 600 ICs (addressable pixels) on a single controller, with 15A of total output current on DC 5 / 12 / 24V input. Each pixel is individually addressable for per-pixel effects and animations.

Can I use kinetic or battery-free switches and sensors?

Yes. The SPI LED Controller is compatible with kinetic (battery-free) switches, multi-sensors, motion sensors, and contact sensors. A kinetic wall switch needs no wiring and no batteries, and a sensor can trigger an effect on a single node or a whole group.

Is it controlled from a phone app?

Yes. You control the SPI LED Controller from the free MESHLE App over MESHLE Bluetooth Mesh — pick predefined effects, build custom ones in the Effect and Animation editors, group lights, and set timers. No subscription, and no internet needed for local control.

How many can I network together?

Up to 250 nodes per network. The SPI LED Controller joins the same MESHLE Bluetooth Mesh as your other MESHLE controllers, switches, and sensors, and you control each one individually or in groups from the MESHLE App.

Addressable pixels, your own effects, fully offline.

Put the SPI LED Controller on your bench — drive addressable single-color, CCT, RGB, and RGBCCT strip, build custom effects and animations in the editors, and run it offline with no WiFi or cloud. Talk to engineering for an evaluation unit.
