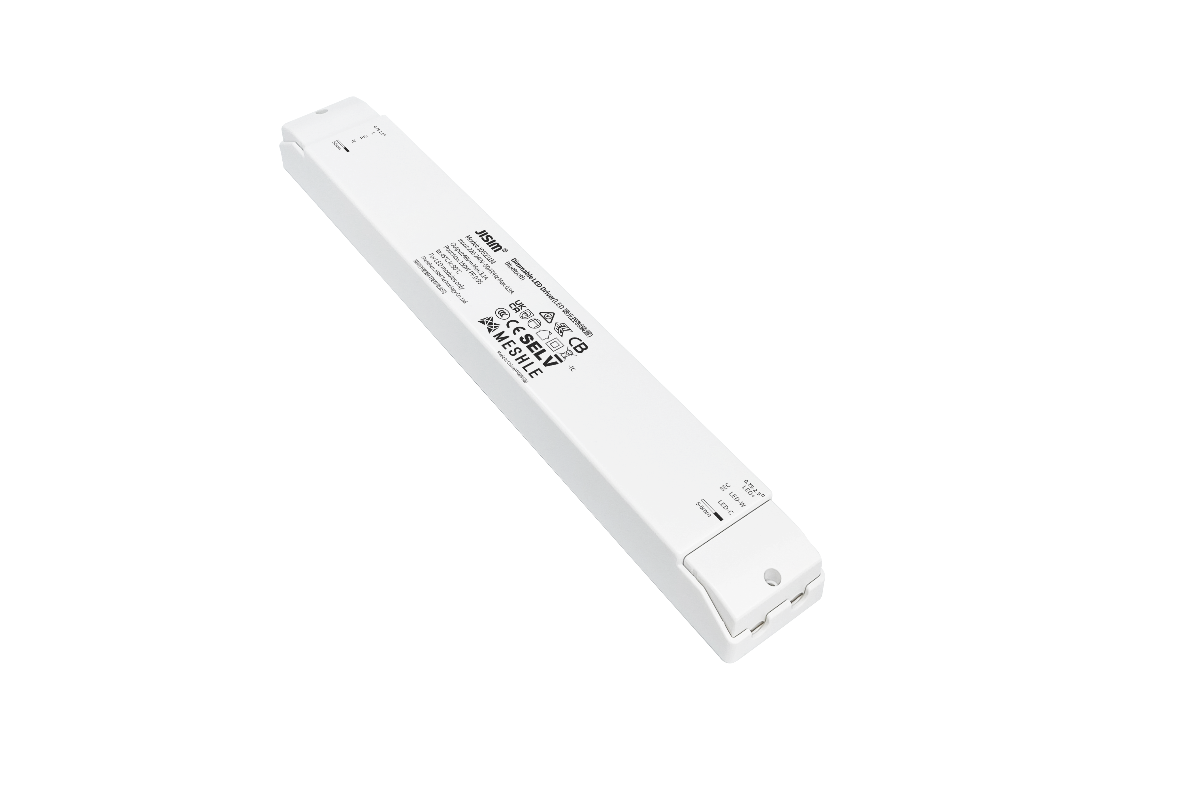

Description
Input Rated Voltage: 220/230/240 Vac
Input Power: 165 W
Input Current: 0.9 A
Output Power Range: 150 W
Rated Output Voltage: 48 Vdc
Output Current Range: 3.1 A
Efficiency: 91%
Power Factor: 0.95
Operating Temperature Range: -20…+45 °C
Working Humidity: 20-95 %RH
Dimming Range: 0-100%
PWM Frequency: 16000 Hz
Ripple: 480 mV
IP Rating: IP20
Life Time: 50000 h
Professional
Animation Editor
Scene and Animations Editor is a unique feature of MESHLE. It allows the creation of scenes across multiple devices in the mesh network, evolving synchronously over time. In a single view, you can easily create sophisticated effects across multiple devices using a user-friendly interface on a phone or tablet. The scenes can then be triggered via the app, voice control, or linked to the physical buttons of a switch.
